Overview

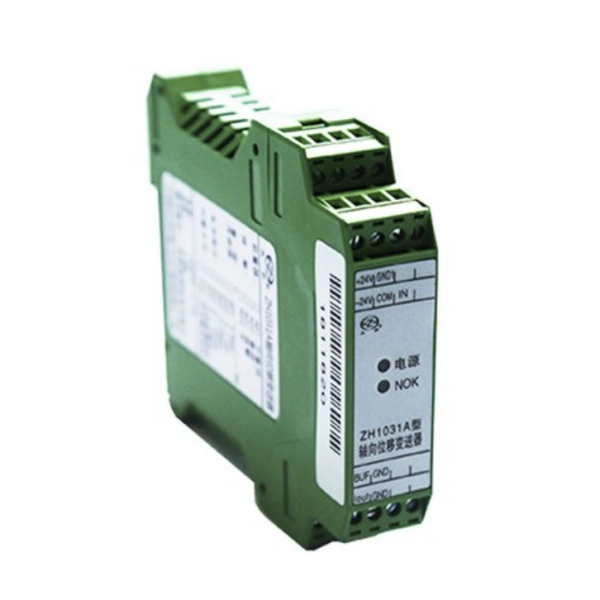

ZH1031A axial displacement transmitter is equipped with ZH3000 eddy current sensor, mainly measuring displacement of rotor of a rotating machinery relative to the stationary part. The transmitter is available in two types:
- Integrated type: ZH1031A axial displacement transmitter integrates preamplifier and signal processing unit of eddy current sensor inside. As long as ZH3000 series eddy current sensor probe is configured, the extension cable can form the system.
- Split type: It requires ZH3000 series eddy current sensor system (including preamplifier, extension cable, and probe) to be connected.
Application
Monitoring and protection of axial positions of rotating machinery such as steam turbines, water turbines, compressors, and fans.
Parameter
Model: ZH1031A axial displacement transmitter
Power supply: 24VDC
Power consumption: <5w
Input signal: ZH3000 proximity sensor
Measurement range: 0~12mm
Accuracy: ±1.0%
Working environment: non-corrosive, non-strong-magnetic
Working temperature: 0~50℃
