Overview

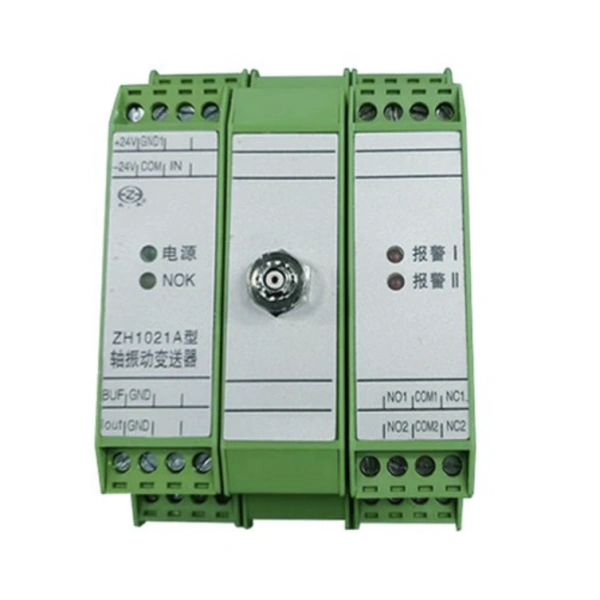

ZH1021A shaft vibration transmitters are equipped with eddy current sensors, mainly for continuous monitoring and measurement of the peak-to-peak radial vibration of the shafts of rotating machinery. The transmitters come in two types:
- Integrated type: The transmitters are internally equipped with the preamplifier and signal processing unit of eddy current sensor. As long as an eddy current sensor with a φ 8mm probe is configured, the extension cable can form the system.
- Split type: A φ 8mm eddy current sensor system (including the preamplifier, extension cable, and probe) needs to be connected.
Application
Monitoring and protection of radial vibration for rotating machinery such as steam turbines, water turbines, compressors, and blowers.
Parameter
Model: ZH1011A vibration transmitter
Power supply: 24VDC
Power consumption: <5W
Input signal: φ 8mm eddy current sensor
Measurement range: 0~500μm
Response frequency: 1~200Hz
Accuracy: ±1.0%
Working environment: non-corrosive, non-strong-magnetic
Working temperature: 0~50℃
