Overview
Vibration measurement is an indispensable monitoring and protection for various large-scale rotating machinery. Input signal of ZH1011A vibration transmitter comes from the SZ series magnetic-electric speed sensor, which can continuously monitor and measure the absolute peak-to-peak vibration or vibration velocity (vibration speed) of the bearings of various rotating machinery. It also outputs analog current or voltage, alarms, shutdown, and sensor buffering signals. The system can be conveniently connected to DCS, PLC systems, and paperless recorders.
Application
Monitoring and protection of vibrations in rotating machinery such as steam turbines, compressors, and fans.
Parameter

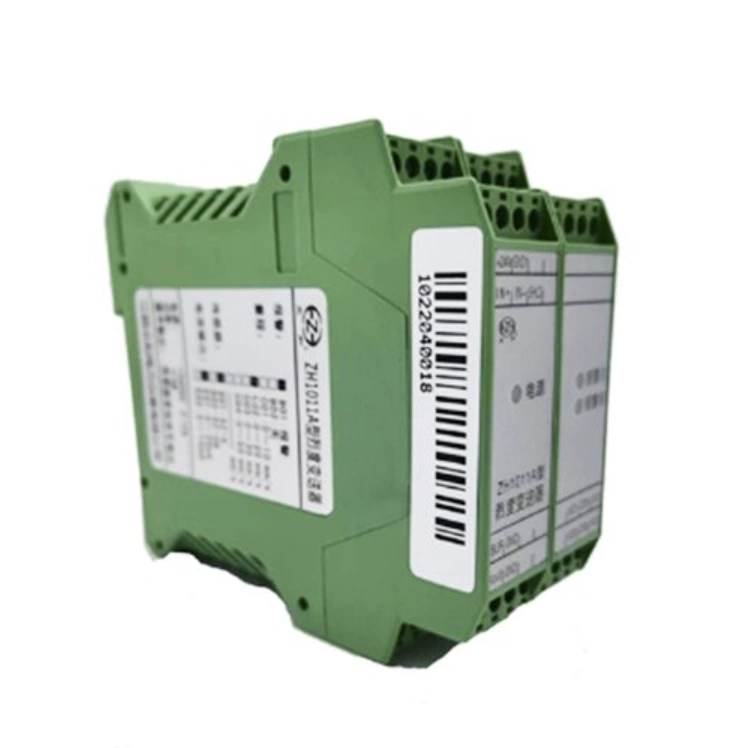

Model: ZH1011A vibration transmitter
Type: vibration/vibration severity transmitter
Power supply: 24VDC
Power consumption: <5W
Input signal: SZ series speed sensor
Measurement range: 0~500μm or 0~50mm/s
Response frequency: 10~500Hz
Accuracy: ±1.0%
Working environment: non-corrosive, non-strong-magnetic
Working temperature: 0~50℃
