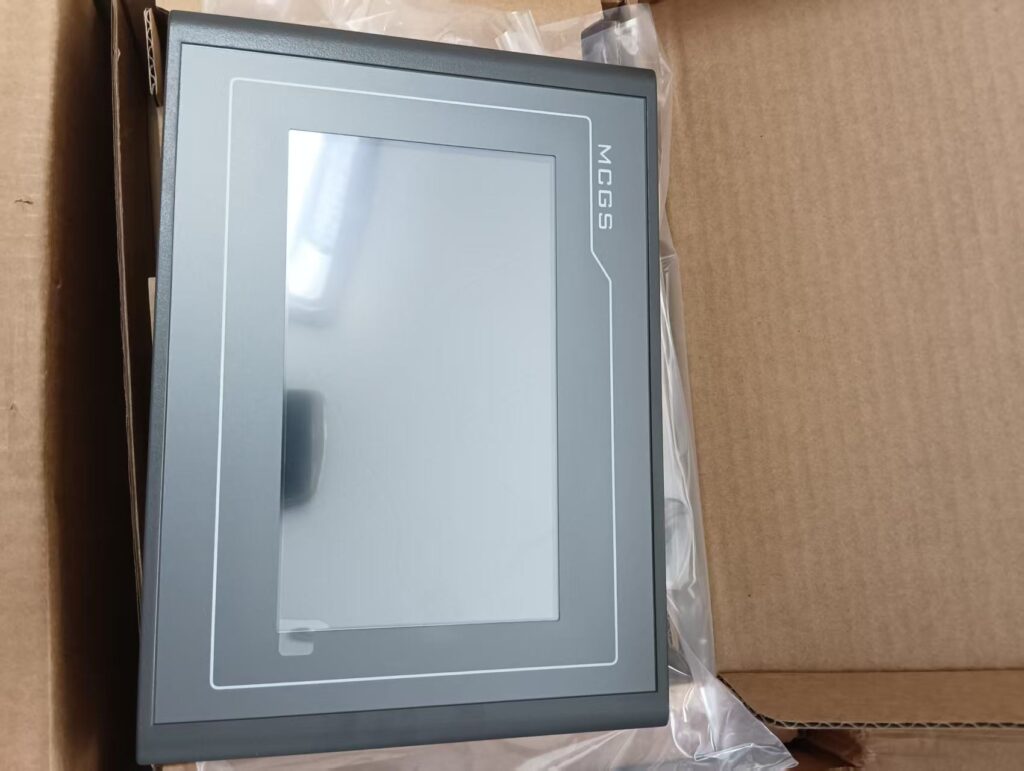

Introduction of MCGS TPC touch screen
MCGS TPC is series product of touch screen to be embedded on control panel. It has various sizes for choice, including 7, 10.2, 10.4, 12.1 or 15 inches. Featured with high definition, fast response and long service life, MCGS TPC touch screen is widely used in industrial automation areas. By collecting & processing of on-site data, it provides clients solution to solve practical engineering problem by animation display, alarm warning, process control, report generation, etc.
Functions of MCGS TPC touch screen
- Recipe function. It can store tens of thousand of recipes to make industrial production simple and flexible.
- Curve graphs. Various functional components like real-time, historical, relative and plate curves.
- Report generation. Real-time, historical, statistical and alarming report for data analysis.
- Alarm function. Impeccable alarming mechanism including alarm setting, triggering, storage, response, etc.
- Thousands of driving software accepted. Compatible with PLC, VFD, servo, instrumentation, modular or customized drives.
- Management of service period. Service duration can be locked by a code, which can be cancelled remotely.
- Drives tool kit. Development of drives is available by end user.
- Authority management. Settings of multiple authorities is available. Operation record is kept.
- USB disk update. Download by USB for upgrade of operation environment. Convenient and effective for batch production.
Advantages of MCGS TPC touch screen
- Big screen, high definition. 65536 colors, definition 1024×768 for excellent user experience.
- Advanced CPU. Cortex-A8 architecture, 1GHz frequency, superior performance.
- Cast aluminum casing. Metallic framework, longer life.
- Large storage. 4G storage for massive data.
- Fast transmission. 100M Ethernet. Establish a multi-level network for speedy data transmission.
- Various interface. 232/485/LAN/USB interface for Internet of Things.
- MPI connection. Siemens 300PLC communication.
- Product certification. CE/FCC/IC/ISO for reliable product quality.
Models of MCGS TPC touch screen
T series: TPC7062TD, TPC7062TX, TPC1061TD, TPC1061Ti
H series: TPC7062HI, TPC7062Hw, TPC7062Hn, TPC1061Hn, TPC1162Hi, TPC1261Hi, TPC1561Hi
K series: TPC7032Kx, TPC7032Kt, TPC1031Kt, TPC7032Kw, TPC7032Ki, TPC1031Ki
N series: TPC7022Ni, TPC7022Nt, TPC1021Nt, TPC1031Ni, TPC1431Ni, TPC1231Ni, TPC1531Ni, TPC1530Ni
E series: TPC7012EI, TPC7012Ew, TPC7022Ex, TPC7022Ew, TPC7021Ex, TPC7021Ew, TPC1021Et
G series: TPC7072Gt, TPC1071Gt, TPC7072Gi, TPC1071Gi, TPC1570Gi, TPC1071Gn, TPC1271Gn, TPC1571Gn, TPC1570Gn
Data sheet of MCGS TPC touch screen
| Model | TPC7062TD | TPC7062TX | TPC7062TX | TPC1061TD | TPC1061Ti |
|---|---|---|---|---|---|
| Liquid crystal display | 7'' TFT | 7'' TFT | 7'' TFT | 10.1'' TFT | 10.1'' TFT |
| Backlight | LED | ||||
| Display color | 65536 | ||||
| Definition | 800×480 | 800×480 | 800×480 | 1024×600 | 1024×600 |
| Display brightness | 200cd/m2 | 200cd/m2 | 200cd/m2 | 300cd/m2 | 300cd/m2 |
| Touch screen | Analog 4-wire resistive | ||||
| Input voltage | 24±20% VDC | ||||
| Rated power | 5W | 5W | 5W | 5.5W | 5.5W |
| CPU | A8 300MHz | A8 600MHz | A8 600MHz | A8 600MHz | A8 600MHz |
| Process memory | 128M | ||||
| System memory | 128M | ||||
| Extended memory | - | ||||
| Configuration software | MCGS | ||||
| Serial interface | COM1(RS232) COM2(RS485) | ||||
| USB interface | 1×USB host 1×USB slave | ||||
| Ethernet interface | - | - | 10/100MHz self-adaptive | 10/100MHz self-adaptive | 10/100MHz self-adaptive |
| Extended interface | No | Yes | Yes | No | Yes |
| Storage temperature | -10~60℃ | ||||
| Working temperature | 0~45℃ | ||||
| Working humidity | 5~90% | ||||
| Casing material | Engineering plastics | ||||
| Dimension (mm) | 226×163 | 226×163 | 226×163 | 274×193 | 274×193 |
| Mounting hole size (mm) | 215×152 | 215×152 | 215×152 | 261×180 | 261×180 |
| Certification | CE/FCC | ||||
| Protection | IP65 (front panel) | ||||
| Electromagnetic compatibility | Grade 3 | ||||
| Model | TPC7062HI | TPC7062Hw | TPC7062Hn | TPC1061Hn |
|---|---|---|---|---|
| Liquid crystal display | 7'' TFT | 7'' TFT | 7'' TFT | 10.1'' TFT |
| Backlight | LED | |||
| Display color | 65536 | |||
| Definition | 800×480 | 800×480 | 800×480 | 1024×600 |
| Display brightness | 200cd/m2 | 200cd/m2 | 200cd/m2 | 300cd/m2 |
| Touch screen | Analog 4-wire resistive | |||
| Input voltage | 24±20% VDC | |||
| Rated power | 5W | 5W | 5W | 5.5W |
| CPU | A8 300MHz | A8 600MHz | A8 600MHz | A8 1GHz |
| Process memory | 128M | 128M | 128M | 512M |
| System memory | 128M | |||
| Extended memory | - | |||
| Configuration software | MCGS | |||
| Serial interface | COM1(RS232) COM2(RS4845) | COM1(RS232) COM2(RS485) | COM1(RS232) COM2(RS485) | COM1(RS232) COM2(RS485) COM3(RS485) |
| USB interface | 1×USB host 1×USB slave | 1×USB host 1×USB slave | 1×USB host 1×USB slave | 1×USB host |
| Ethernet interface | - | - | 10/100MHz self-adaptive | 10/100MHz self-adaptive |
| Extended interface | No | No | No | No |
| Storage temperature | -10~60℃ | |||
| Working temperature | 0~45℃ | |||
| Working humidity | 5~90% | |||
| Casing material | Engineering plastics | Engineering plastics | Engineering plastics | Cast Aluminum |
| Dimension (mm) | 203×149 | 203×149 | 203×149 | 271×213 |
| Mounting hole size (mm) | 192×138 | 192×138 | 192×138 | 260×202 |
| Certification | CE/FCC | |||
| Protection | IP65 (front panel) | |||
| Electromagnetic compatibility | Grade 3 | |||
| Model | TPC1162Hi | TPC1261Hi | TPC1561Hi |
|---|---|---|---|
| Liquid crystal display | 10.4'' TFT | 12.1'' TFT | 15'' TFT |
| Backlight | LED | ||
| Display color | 65536 | ||
| Definition | 800×600 | 1024×768 | 1024×768 |
| Display brightness | 300cd/m2 | ||
| Touch screen | Analog 4-wire resistive | ||
| Input voltage | 24±20% VDC | ||
| Rated power | 11W | 13W | 15W |
| CPU | A8 1GHz | ||
| Process memory | 512M | ||
| System memory | 128M | ||
| Extended memory | 4G | ||
| Configuration software | MCGS | ||
| Serial interface | COM1(RS232) COM2(RS4845) | COM1(RS232) COM2(RS485) | COM1(RS232) COM2(RS232/RS485) COM3(RS232) COM4(RS485) |
| USB interface | 2×USB host | ||
| Ethernet interface | 10/100MHz self-adaptive | ||
| Extended interface | No | No | No |
| Storage temperature | -10~60℃ | ||
| Working temperature | 0~50℃ | ||
| Working humidity | 5~90% | ||
| Casing material | Engineering plastics | Aluminum alloy | Aluminum alloy |
| Dimension (mm) | 315×239 | 323×246 | 420×310 |
| Mounting hole size (mm) | 303×226 | 303×226 | 384×284 |
| Certification | CE/FCC | ||
| Protection | IP65 (front panel) | ||
| Electromagnetic compatibility | Grade 3 | ||

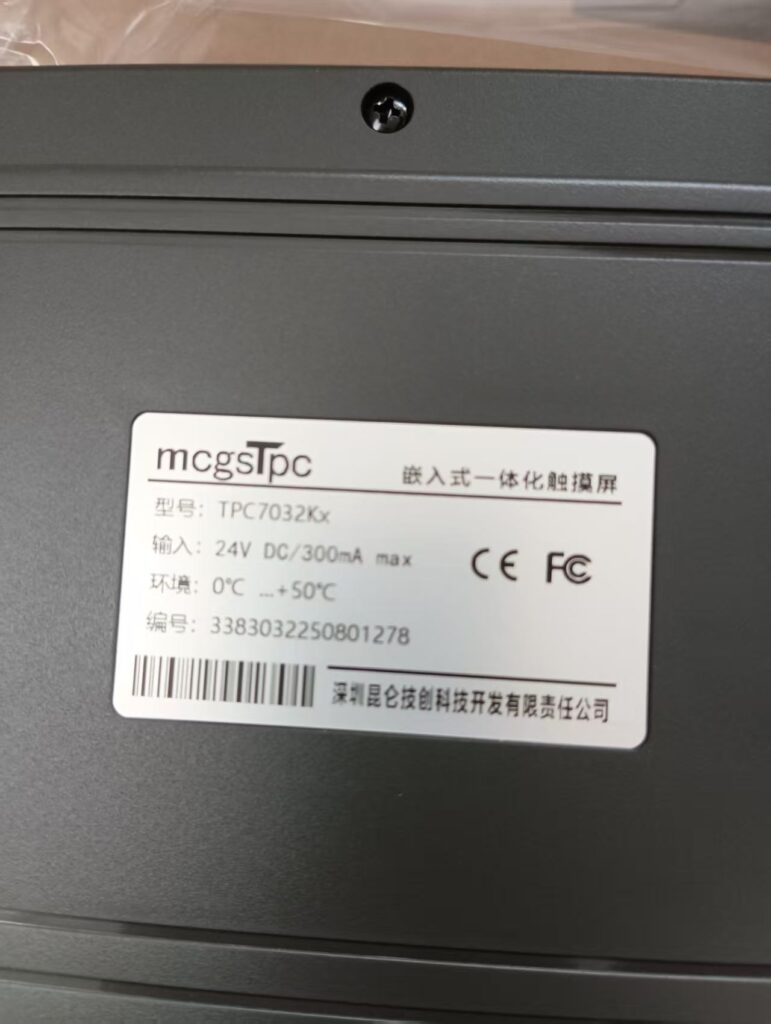

| Model | TPC7032Kx | TPC7032Kt | TPC1031Kt |
|---|---|---|---|
| Liquid crystal display | 7'' TFT | 7'' TFT | 10.1'' TFT |
| Backlight | LED | ||
| Display color | 262K | ||
| Definition | 800×480 | 800×480 | 1024×600 |
| Display brightness | 250cd/m2 | 250cd/m2 | 300cd/m2 |
| Touch screen | Analog 4-wire resistive | ||
| Input voltage | 24±20% VDC | ||
| Rated power | 5W | 5W | 6W |
| CPU | A7 800MHz | ||
| Process memory | 128M | ||
| System memory | 128M | ||
| Hardware clock | Built-in | ||
| Configuration software | MCGS | ||
| Serial interface | COM1(RS232) COM2(RS485) COM3(RS485) or COM1(RS232) COM9(RS422) | ||
| USB interface | 1×USB host 1×USB slave | 1×USB host 1×USB slave | 1×USB host/slave |
| Ethernet interface | - | 10/100MHz self-adaptive | 10/100MHz self-adaptive |
| Storage temperature | -10~60℃ | ||
| Working temperature | 0~45℃ | ||
| Working humidity | 5~90% | ||
| Casing material | Engineering plastics | ||
| Dimension (mm) | 226×163 | 226×163 | 274×193 |
| Mounting hole size (mm) | 215×152 | 215×152 | 261×180 |
| Certification | CE/FCC | ||
| Protection | IP65 (front panel) | ||
| Electromagnetic compatibility | Grade 3 | ||
| Model | TPC7032Kw | TPC7032Ki | TPC1031Ki |
|---|---|---|---|
| Liquid crystal display | 7'' TFT | 7'' TFT | 10.1'' TFT |
| Backlight | LED | ||
| Display color | 262K | ||
| Definition | 800×480 | 800×480 | 1024×600 |
| Display brightness | 250cd/m2 | 250cd/m2 | 300cd/m2 |
| Touch screen | Analog 4-wire resistive | ||
| Input voltage | 24±20% VDC | ||
| Rated power | 5W | 5W | 6W |
| CPU | A7 800MHz | ||
| Process memory | 128M | ||
| System memory | 128M | ||
| Hardware clock | Built-in | ||
| Configuration software | MCGS | ||
| Serial interface | COM1(RS232), COM2(RS485), COM3(RS485) or COM1(RS232), COM9(RS422) | ||
| USB interface | 1×USB host 1×USB slave | 1×USB host/slave | 1×USB host |
| Ethernet interface | - | 10/100MHz self-adaptive | 10/100MHz self-adaptive |
| Storage temperature | -10~60℃ | ||
| Working temperature | 0~45℃ | ||
| Working humidity | 5~90% | ||
| Casing material | Engineering plastics | ||
| Dimension (mm) | 203×149 | 203×149 | 271×213 |
| Mounting hole size (mm) | 192×138 | 192×138 | 260×202 |
| Certification | CE/FCC | ||
| Protection | IP65 (front panel) | ||
| Electromagnetic compatibility | Grade 3 | ||
| Model | TPC7022Ni | TPC7022Nt | TPC1021Nt |
|---|---|---|---|
| Liquid crystal display | 7'' TFT | 7'' TFT | 10.1'' TFT |
| Backlight | LED | ||
| Display color | 65536 | ||
| Definition | 800×480 | 800×480 | 1024×600 |
| Display brightness | 250cd/m2 | 250cd/m2 | 300cd/m2 |
| Touch screen | Analog 4-wire resistive | ||
| Input voltage | 24±20% VDC | ||
| Rated power | 6W | 6W | 7W |
| CPU | ARM 800MHz | ||
| Process memory | 128M | ||
| System memory | 128M | ||
| Hardware clock | Built-in | ||
| Configuration software | MCGS Pro | ||
| Serial interface | COM1(RS232), COM2(RS485), COM3(RS485) or COM1(RS232), COM9(RS422) | ||
| USB interface | 1×USB host | ||
| Ethernet interface | 10/100MHz self-adaptive | ||
| Wi-Fi | Wi-Fi IEEE802.11 b/g/n | ||
| Storage temperature | -10~60℃ | ||
| Working temperature | 0~50℃ | ||
| Working humidity | 5~90% | ||
| Casing material | Engineering plastics | ||
| Dimension (mm) | 203×149 | 226×163 | 274×193 |
| Mounting hole size (mm) | 192×138 | 215×152 | 261×180 |
| Certification | CE/FCC | ||
| Protection | IP65 (front panel) | ||
| Electromagnetic compatibility | Grade 3 | ||
| Model | TPC1031Ni | TPC1431Ni | TPC1231Ni | TPC1531Ni | TPC1530Ni |
|---|---|---|---|---|---|
| Liquid crystal display | 10.1'' TFT | 14'' TFT | 12.1'' TFT | 15'' TFT | 15.6'' TFT |
| Backlight | LED | ||||
| Display color | 262K | ||||
| Definition | 1024×600 | 1366×768 | 1024×768 | 1024×768 | 1920×1080 |
| Display brightness | 300cd/m2 | 220cd/m2 | 300cd/m2 | 300cd/m2 | 220cd/m2 |
| Touch screen | Analog 4-wire resistive | ||||
| Input voltage | 24±20% VDC | ||||
| Rated power | 7W | 16W | 14W | 16W | 16W |
| CPU | Cortex-A7 1GHz | ||||
| Process memory | 128M | ||||
| System memory | 128M | ||||
| Hardware clock | Built-in | ||||
| Configuration software | MCGS Pro | ||||
| Serial interface | COM1(RS232), COM2(RS485), COM3(RS485) or COM1(RS232), COM9(RS422) | ||||
| USB interface | 1×USB host | ||||
| Ethernet interface | 10/100MHz self-adaptive | ||||
| Wi-Fi | Wi-Fi IEEE802.11 b/g/n | ||||
| Storage temperature | -10~60℃ | ||||
| Working temperature | 0~50℃ | ||||
| Working humidity | 5~90% | ||||
| Casing material | Engineering plastics | ||||
| Dimension (mm) | 271×213 | 355×240 | 313×237 | 376×290 | 395×258 |
| Mounting hole size (mm) | 192×138 | 345×230 | 303×226 | 366×280 | 384×247 |
| Certification | CE/FCC | ||||
| Protection | IP65 (front panel) | ||||
| Electromagnetic compatibility | Grade 3 | ||||
| Model | TPC7012EI | TPC7012Ew |
|---|---|---|
| Liquid crystal display | 7'' TFT | 7'' TFT |
| Backlight | LED | |
| Display color | 65536 | |
| Definition | 800×480 | 800×480 |
| Display brightness | 250cd/m2 | 250cd/m2 |
| Touch screen | Analog 4-wire resistive | |
| Input voltage | 24±20% VDC | |
| Rated power | 5W | 5W |
| CPU | ARM9 600MHz | |
| Process memory | 64M | |
| Data storage | 8M | |
| Hardware clock | Built-in | |
| Configuration software | MCGS Pro | |
| Serial interface | COM1(RS232), COM2(RS485), COM3(RS485) or COM1(RS232), COM9(RS422) | |
| USB interface | 1×USB host/slave | |
| Ethernet interface | - | - |
| Wi-Fi | Wi-Fi IEEE802.11 b/g/n | |
| Storage temperature | -10~60℃ | |
| Working temperature | 0~45℃ | |
| Working humidity | 5~90% | |
| Casing material | Engineering plastics | |
| Dimension (mm) | 203×149 | 226×163 |
| Mounting hole size (mm) | 192×138 | 215×152 |
| Certification | CE/FCC | |
| Protection | IP65 (front panel) | |
| Electromagnetic compatibility | Grade 3 | |
| Model | TPC7022Ex | TPC7022Ew | TPC7021Ex | TPC7021Ew | TPC1021Et |
|---|---|---|---|---|---|
| Liquid crystal display | 7'' TFT | 7'' TFT | 7'' TFT | 7'' TFT | 10.1'' TFT |
| Backlight | LED | ||||
| Display color | 65536 | ||||
| Definition | 800×480 | 800×480 | 1024×600 | 1024×600 | 1024×600 |
| Display brightness | 250cd/m2 | 250cd/m2 | 250cd/m2 | 250cd/m2 | 300cd/m2 |
| Touch screen | Analog 4-wire resistive | ||||
| Input voltage | 24±20% VDC | ||||
| Rated power | 5W | 5W | 5W | 5W | 6W |
| CPU | Cortex-A7 800MHz | ||||
| Process memory | 64M | ||||
| Data storage | 8M | ||||
| Hardware clock | Built-in | ||||
| Configuration software | MCGS Pro | ||||
| Serial interface | COM1(RS232), COM2(RS485), COM3(RS485) or COM1(RS232), COM9(RS422) | ||||
| USB interface | 1×USB host/slave | ||||
| Ethernet interface | 10/100M self-adaptive | ||||
| Storage temperature | -10~60℃ | ||||
| Working temperature | 0~45℃ | ||||
| Working humidity | 5~90% | ||||
| Casing material | Engineering plastics | ||||
| Dimension (mm) | 226×163 | 203×149 | 226×163 | 203×149 | 274×193 |
| Mounting hole size (mm) | 215×152 | 192×138 | 215×152 | 192×138 | 261×180 |
| Certification | CE/FCC | ||||
| Protection | IP65 (front panel) | ||||
| Electromagnetic compatibility | Grade 3 | ||||
| Model | TPC7072Gt | TPC1071Gt | TPC7072Gi | TPC1071Gi | TPC1570Gi |
|---|---|---|---|---|---|
| Liquid crystal display | 7'' TFT | 10.1'' TFT | 7'' TFT | 10.1'' TFT | 15.6'' TFT |
| Backlight | LED | ||||
| Display color | 262K | ||||
| Definition | 800×480 | 1024×600 | 800×480 | 1024×600 | 1920×1080 |
| Display brightness | 250cd/m2 | 300cd/m2 | 250cd/m2 | 300cd/m2 | 220cd/m2 |
| Touch screen | Analog 4-wire resistive | ||||
| Input voltage | 24±20% VDC | ||||
| Rated power | 5W | 6W | 5W | 6W | 15W |
| CPU | 4 cores, 1GHz | ||||
| Process memory | 512M | ||||
| System memory | 4G | ||||
| Hardware clock | Built-in | ||||
| Configuration software | MCGS Pro | ||||
| Serial interface | COM1(RS232), COM2(RS485), COM3(RS485) or COM1(RS232), COM9(RS422) | ||||
| USB interface | 1×USB host/slave | 1×USB host/slave | 1×USB host/slave | 1×USB host | 1×USB host |
| Ethernet interface | 10/100M self-adaptive | ||||
| Storage temperature | -10~60℃ | ||||
| Working temperature | 0~45℃ | ||||
| Working humidity | 5~90% | ||||
| Casing material | Engineering plastics | Engineering plastics | Engineering plastics | Cast aluminum | Cast aluminum |
| Dimension (mm) | 226×163 | 274×193 | 203×149 | 271×213 | 395×258 |
| Mounting hole size (mm) | 215×152 | 261×180 | 192×138 | 260×202 | 384×247 |
| Certification | CE/FCC | ||||
| Protection | IP65 (front panel) | ||||
| Electromagnetic compatibility | Grade 3 | ||||
| Model | TPC1071Gn | TPC1271Gn | TPC1571Gn | TPC1570Gn |
|---|---|---|---|---|
| Liquid crystal display | 10.1'' TFT | 12.1'' TFT | 15'' TFT | 15.6'' TFT |
| Backlight | LED | |||
| Display color | 262K | |||
| Definition | 1024×600 | 1024×768 | 1024×768 | 1920×1080 |
| Display brightness | 300cd/m2 | 300cd/m2 | 300cd/m2 | 220cd/m2 |
| Touch screen | Analog 4-wire resistive | |||
| Input voltage | 24±20% VDC | |||
| Rated power | 6W | 13W | 15W | 15W |
| CPU | 4 cores, 1GHz | |||
| Process memory | 1G | |||
| System memory | 4G | |||
| Hardware clock | Built-in | |||
| Configuration software | MCGS Pro | |||
| Serial interface | COM1(RS232), COM2(RS485), COM3(RS485) or COM1(RS232), COM9(RS422) | |||
| USB interface | 2×USB host | |||
| Ethernet interface | 2×10/100M self-adaptive | |||
| Storage temperature | -10~60℃ | |||
| Working temperature | 0~45℃ | |||
| Working humidity | 5~90% | |||
| Casing material | Cast aluminum | |||
| Dimension (mm) | 271×213 | 313×237 | 376×290 | 395×258 |
| Mounting hole size (mm) | 260×202 | 303×226 | 366×280 | 384×247 |
| Certification | CE/FCC | |||
| Protection | IP65 (front panel) | |||
| Electromagnetic compatibility | Grade 3 | |||
