DJM DJY water level electrode

Overview

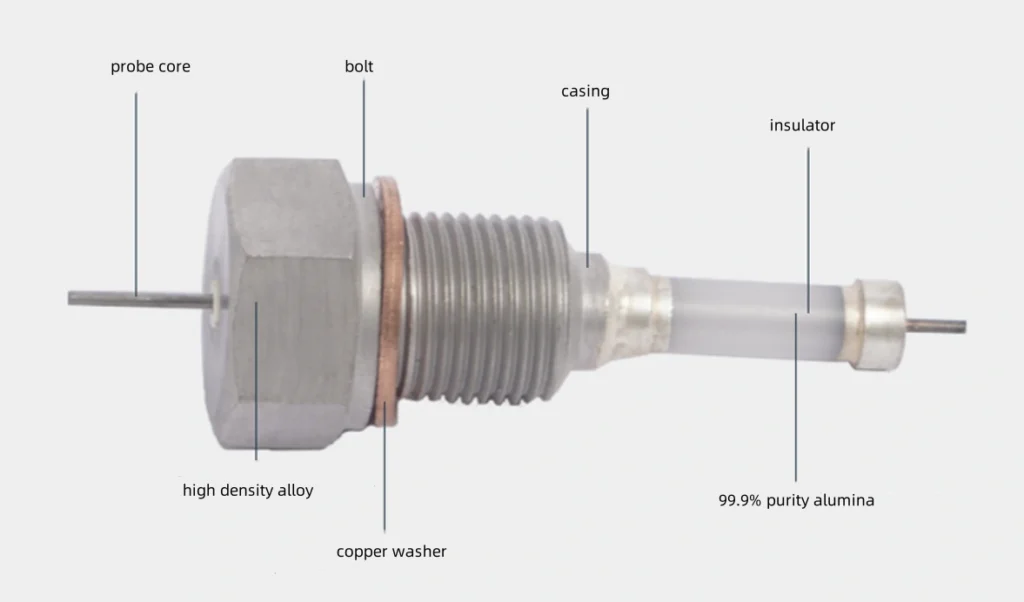

DJM/DJY series water level electrode is made of 99.9% purity ceramic casing and alloy steel, and acts as sensing part of electronic drum level indicator. Featured with rigid structure, reliable performance, sensitive response, accurate control, DJM/DJY water level electrode is compatible with UDZ drum level indicator. It is widely used to monitor water level of boiler drum, feedwater heater, deaerator, steam condenser, etc.

Technical

Working temperature: ≤450℃
Working pressure: ≤22Mpa
Insulation resistance: ≥500MΩ

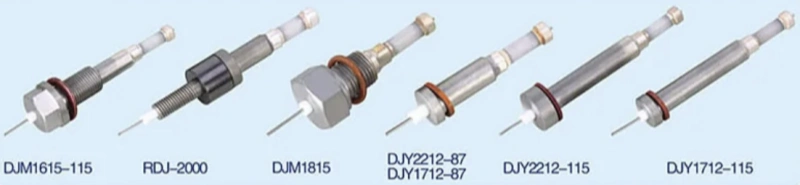

Model

Model	Specification	Connection
DJM1615-115	M161.5115	Thread connection
DJM1615-97	M161.597
DJM1615-87	M161.587
DJM1815-115	M181.5115
DJM1815-97	M181.597
DJM1815-87	M181.587
DJM2015-115	M201.5115
DJM2015-97	M201.597
DJM2015-87	M201.587
DJY1712-115	Φ17Φ12115	Press-in connection
DJY1712-97	Φ17Φ1297
DJY1712-87	Φ17Φ1287
DJY1812-115	Φ18Φ12115
DJY1812-97	Φ18Φ1297
DJY1812-87	Φ18Φ1287
DJY2012-115	Φ20Φ12115
DJY2012-97	Φ20Φ1297
DJY2012-87	Φ20Φ1287
DJY2212-115	Φ22Φ12115
DJY2212-97	Φ22Φ1297
DJY2212-87	Φ22Φ1287
